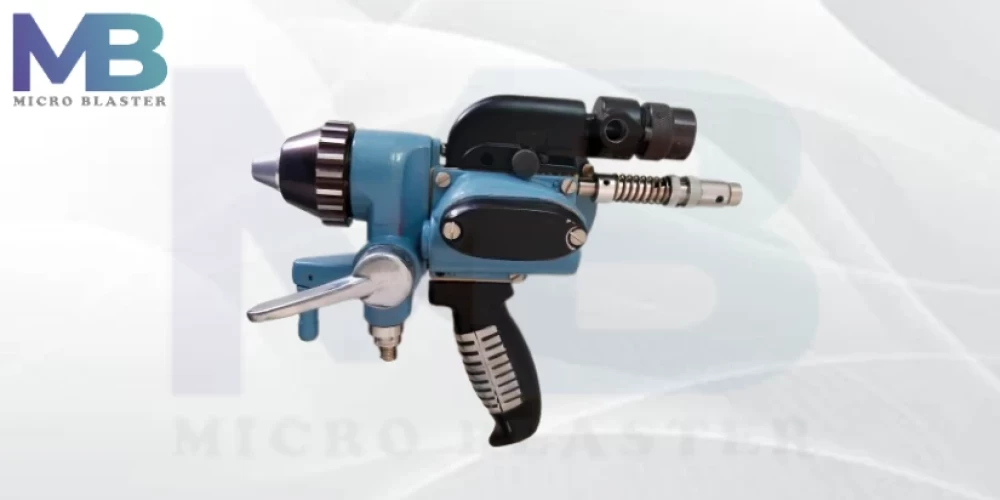

Wire Flame Spray Gun

Specifications

Wire Flame Spray Gun Manufacturer

In wire flame spraying, the first function of the flame is to melt the feedstock material. A stream of air then atomizes the hot substance and propels it toward the workpiece. Spray rates for materials like stainless steel are in the range of 0.5 to 9 kg/h (1 to 20 lb/h). Again, lower melting point materials like zinc and tin alloys spray at much higher rates. Substrate temperatures often range from 95 to 205 °C (200 to 400 °F) due to the excess energy input required for flame melting. In most thermal spray gun processes, less than 10% of the input energy is certainly used to melt the feedstock material.

Features of Wire Flame Spray Gun

• Wire sizes 3.15 mm to suit many applications and coating requirements.
• Variable wire speed control.
• Suitable for wires, steels, copper, and bronzes plus anti-corrosion materials.
• Larger areas to be sprayed efficiently.
• Freestanding wall control panel with safety shut-off valve.
• Use such fuel only i.e. Oxygen, Nitrogen.
• Conductive coating application.

Applications of Wire Flame Spray Gun

• Reclaiming parts for roller and shaft.
• Non-ferrous: Copper, Bronze coating.
• Fine coatings with low heat input.
• Wear coatings, Molybdenum.

Wire Flame Spray Gun Supplier in India

We are the manufacturer of Metal Spray Gun, Flame Spray gun, Powder Flame Spray Gun, Metallizing Gun are the same kinds of equipment – All these are using in Coating so it’s also called as Equipment. We are the Largest Manufacturer of Wire Flame Gun.
